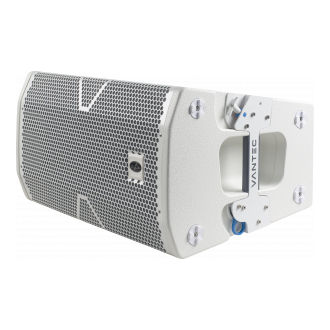

DAS Audio Vantec20A-W- Active Curved array speaker ( white)
The VANTEC-20A is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today’s sound hire professionals. Whether it be stacked on the VANTEC-118A companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.
Designed for use in arrays of up to 5 units, the VANTEC-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock™ rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A . Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5º up or down tilt.
The DAScontrolTM interface allows users to easily configure the VANTEC-20A i systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A is used individually, the DASlink™APP can be used to stream music in high definition stereo and remotely control the systems functions.
The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 Wpeak Class D amplifier in a biamplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.
Technical Data
Performance
Frequency Range (-10 dB)
63 Hz – 20 kHz
Horizontal Coverage (-6 dB)
90º
Vertical Coverage
15º
Maximum Peak SPL at 1 m
135 dB
Electronics and Connectors
Nominal Amplifier Power (continuous)
750 W
Nominal Amplifier Power (peak)
1500 W
Input Impeadance
20 kohms
Input Sensitivity
Line: 3 V (+12 dBu)
Audio Signal Input Connector
2 x Female XLR
Audio Signal Loop Thru Connector
1 x Male XLR
Control
DASlink™
DAScontrol™AC Output Connector
powerCON NAC3FCB
Current Draw 230 V / 115 V
1.5 A/3.0 A
Enclosure
Enclosure Construction
Birch Plywood
Enclosure Geometry
Trapezoidal
Rigging
Captive Rigging System
Finish
ISO-flex Paint
Color
Black
Dimensions ( H x W x D )
335 x 625 x 440 mm
13,2 x 24,6 x 17,3 inNet Weight
28,5 kg ( 62,8 lb )
Components
LF Driver
12F4C
HF Driver
M-60
Horn/Waveguide
BC-915
Shipping
Carton Dimensions ( H x W x D )
490 x 730 x 490 mm
19,3 x 28,7 x 19,3 inShipping Weight
30,5 kg ( 67,2 lb )
